IWATSUs Market Leading BH Analyzer Series

IWATSUs BH-Analyzer series SY-8218/8219 and the NEWLY introduced SY-8264 are the de-factor market standards for soft magnetic material characterization. The IWATSU BH-Analyzer can be configured to customer needs and upgraded after purchase if needed.

Key Factores are:

• Wide Frequency Range vom 10 Hz - 30 MHz
• High Accuracy Phase Measurements of ± 0.15 °
• 26 Measurement Parameters capured in a Single Measurement
• Remote Control Software SY-820 included
• Core Loss Measurements
• BH Curve Analysis
• Permeability Testing

How to operate the SY-8218 Analyzer:

How to Configure the BH-Analyzer:

Step 1: Select Base Model & Frequency Option (SY-8264 only)

Step 2: Select Power Amplifier

Step 3: Select DC BIas Tester

Step 4: Select Software and Accessories

Step 5: Select Chamber System

Step 6: Select Temperature Testing Options

The configuration table can be found on the SY-8218/8219 and SY-8264 series pages.

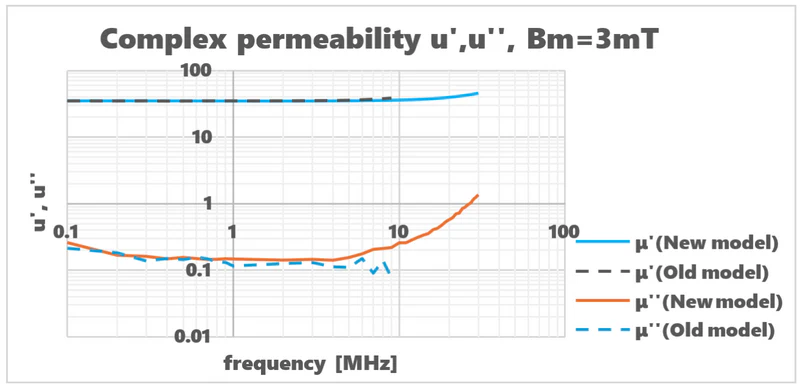

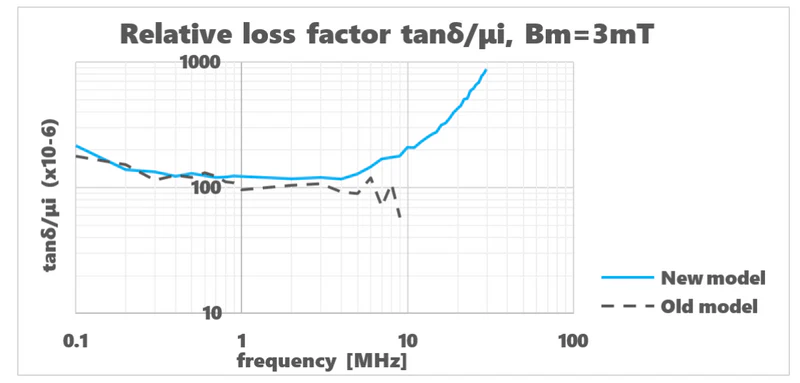

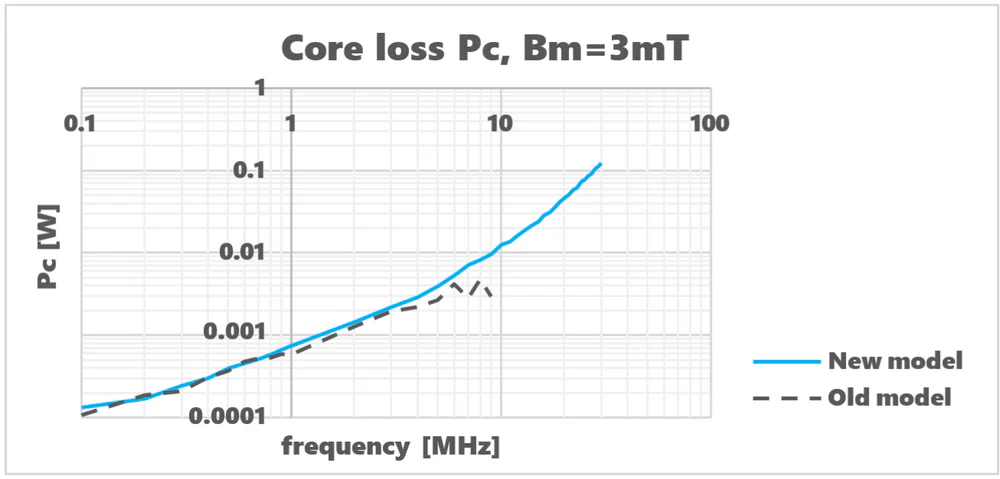

Comparison of the SY-8218 Model versus the NEW SY-8264 Model
